Crom® Water pump kit Volvo Penta MD3 MD17 AQ115 AQ130 875698 pump 829895

  • €89,90
  • Save €30,00
Tax included. Shipping calculated at checkout.

+ -
Only 2 left!

High-quality marine engine spare parts from Sweden.

CromMarine® premium-quality water pump shaft kit for Volvo Penta:

  • AQ60F AQ90 AQ95 AQ95A AQ110
  • AQ120
  • BB30 BB100
  • MB18 MB20A MB20B MB20C
  • AQ105A
  • AQ115A AQ115B BB115 BB115B BB115C
  • AQ130A AQ130B AQ130C AQ130D
  • MD3B
  • MD17C MD17D

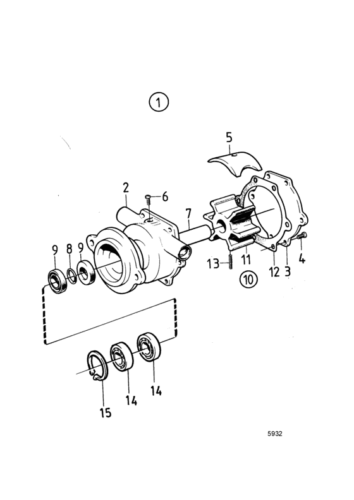

This water pump shaft kit is suitable for the six-bolt pump with bearings, which is the successor to the earlier plain-bearing pump. This pump has a Volvo Penta reference #829895, which is equivalent to Johnson pump 10-35098-3. Most of the aforementioned models had the plain-bearing pump originally installed, so please double-check that your current pump is ball-bearing.

This repair kit consists of the following parts:

  • Impeller kit 3593659, 22222936 with gasket and pin.
  • Pump shaft, precision machined, made of 316 S.S: 840387
  • Bearings: 181717
  • Seals S.S.: 833996
  • Bolt kit
  • Grommets for the pipe connection
  • O-ring, pump to engine

Impeller specs:

DI:12.66 mm
DE:50.80 mm
H:22.10 mm
6 blades, bronze hub

Known pumps: 829895

This product replaces the following manufacturer's part nr:

  • Volvo Penta: 875698, 3593659, 22222936
  • Recmar: REC875698
  • Orbitrade: ORB15698, 15698
  • Crom order number: 122199

The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
