Sherwood® 24841 water pump repair kit (minor) G2603-01 G2603X G2610X
High-quality marine engine spare parts.
Sherwood® 24841 minor water pump repair kit, suitable for the following pumps:
- G2603-01, G2603-02, G2603-03, G2603X
- G2604-01, G2605-01, G2607-01, G2607X, G2610X
If you have the early style pump that has a replaceable cam and a round wearplate, then this is not the correct kit. The early pump can be identified by having a screw between the 2 flange ports that is used to hold the cam in place.

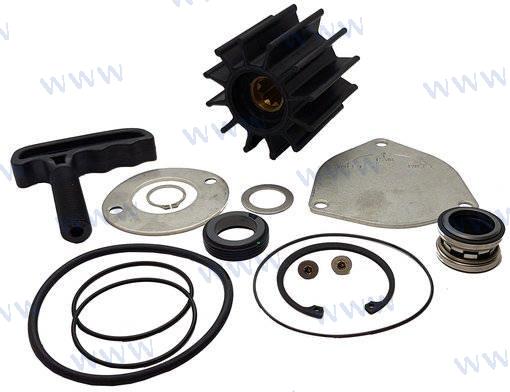

This kit contains:
- Impeller 26000
- Puller
- O-ring 1710-0212
- Seal & seat 23837
- O-ring 19879
- Water pump cover 24074
- Wear plate 24790
- Washer 19866
- Snap ring 19762
- Snap ring 24052
Impeller specifications:
- Diameter: 3-3/4" ~ 95.25mm
- Width: 3-1/8" ~ 79.40mm
- Shaft: 11/12" ~ 23.30mm
- Blades: 12
- Keyway: 10 tooth spline
- Material: Neoprene
This product replaces the following manufacturer's part nr:
- Sherwood Pumps order number: 24841, SHE24841
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
