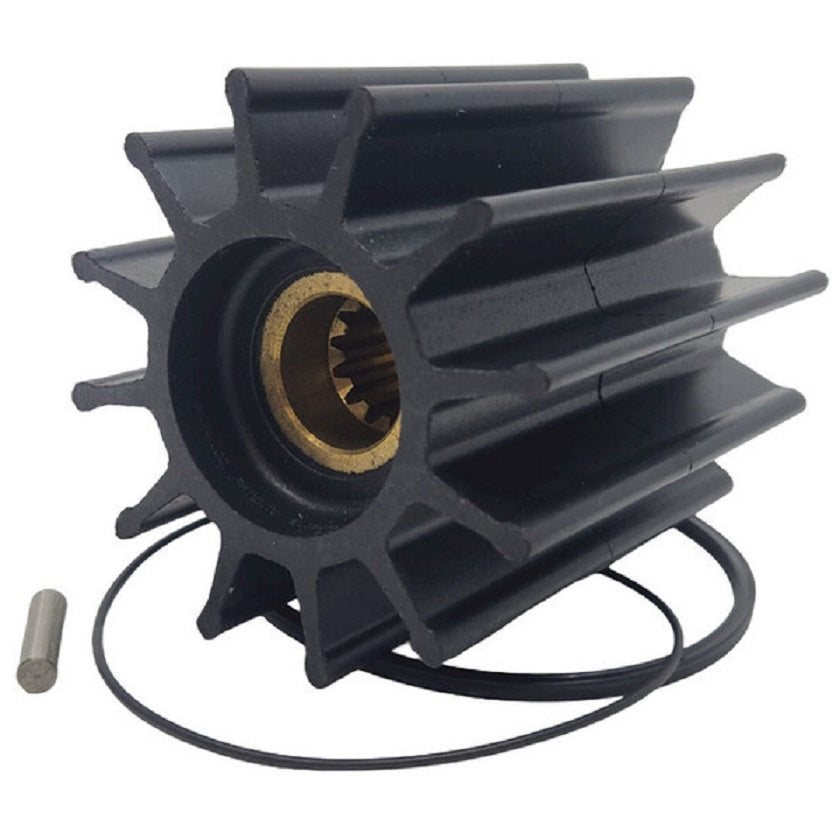

Sherwood® water pump impeller kit 18000K Caterpillar 3406
High-quality marine engine spare parts.
Sherwood ® water pump impeller kit, suitable for the following Sherwood pumps:
- G1801 & G1805 pumps, regularly mounted on Caterpillar 3176 engines (Caterpillar 100-6441 & 123-0500).
- G1807 & G18071-01 pumps, regularly mounted on Caterpillar 3196 engines (Caterpillar 123-0471 & 197-1328).
- G1804 pumps, regularly mounted on Caterpillar 3406 engines (Caterpillar 112-6177).
- G1806 & G18061-01 pumps, regularly mounted on Caterpillar 3406C engines (Caterpillar 030-1160 & 201-0956).
- G1808 & G18081-01 pumps, regularly mounted on Caterpillar 3406E engines (Caterpillar 131-8272 & 196-8895).
- G1810-01 pumps, regularly mounted on Cummins QSM11 engines (Cummins 3349392).
Sherwood suggests that impellers be replaced annually, or at least once a year, depending on the application. However, it is advisable to inspect them frequently to detect any excessive abrasions or damage. Additionally, impellers should be removed from the pump housing during extended periods of inactivity to prevent ultraviolet deterioration, vanes from setting into position, and copper bonding between the impeller and the housing. Engine overheating is the primary cause of premature engine wear, and any issues with the impeller can result in this.
Impeller specifications:
- Diameter: 3-3/4" ~ 95.25mm
- Width: 4" ~ 101.60mm
- Shaft: 15/16" ~ 23.80mm
- Blades: 12
- Keyway: 14 tooth spline
- Material: Neoprene
This product replaces the following manufacturer's part nr:
- Sherwood Pumps order number: 18000K, SHE18000K
- Caterpillar: 109-5324
- Cummins: 4019403, 4933743
- CEF: 500182G, CEF500182G
The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
