Crom® Head Gasket Set Volvo Penta AQ120B AQ125A AQ140A 876300 875587 18-2998

High-quality marine engine spare parts from Sweden.

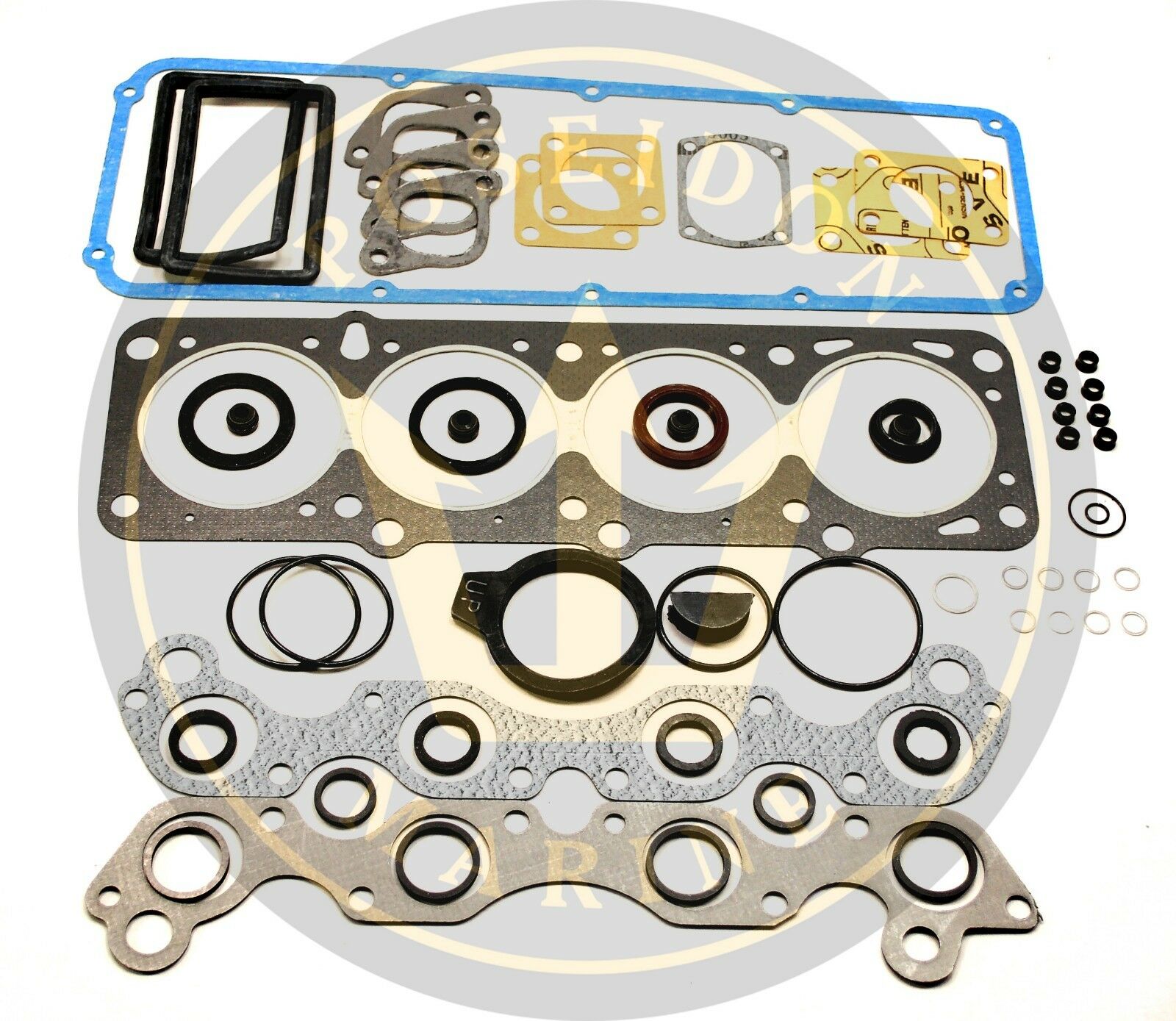

CromMarine® premium-quality decarbonizing gasket set for Volvo Penta:

• AQ120B
• AQ125A
• AQ140A BB140A

This head gasket kit, also known as a decarbonizing gasket kit, includes the head gasket with а reference  1378645, 463412. The cylinder head bolts with reference 1306341, should be replaced when needed[1], and tightening should be performed in two stages with bolts lubricated.

Tightening torque settings:

• 60 Nm 44 lbf. ft.
• 90 Nm 66 lbf. ft. [warmed]

The screws are to be re-torqued after the engine has been warmed up and allowed to cool for 30 minutes. When retorquing, screws must first be loosened sufficiently so that they turn when being re-torqued. (Static friction must be overcome).

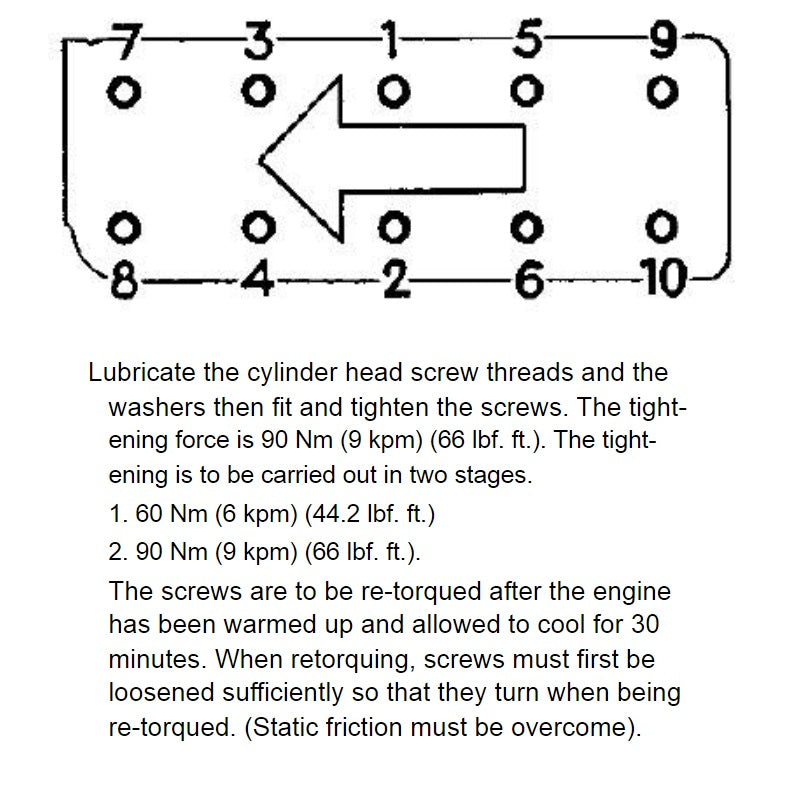

Kindly check the second picture that provides the necessary instructions, directly quoted from the Volvo Penta workshop manual.

[1] The cylinder head bolts should be replaced when there are signs of elongation, or cannot be specified if it is already elongated, by checking the "waist" of the bolt. As a rule of thumb, a cylinder head bolt of these Aquamatic series, cannot be re-used more than five times.

Crom® Head Gasket Set Volvo Penta AQ120B AQ125A AQ140A 876300 875587 18-2998

This product replaces the following manufacturer's part nr:

• Volvo Penta: 876300, 875587

• Orbitrade: ORB21300, 21300
• Sierra: 18-2998
• Recmar: REC876300
• Crom order number: 121027

The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
