Recmar® Head Gasket Set Volvo Penta AQ115A AQ130A AQ130C MB20B 876356 18-2980

High-quality marine engine spare parts.

Recmar® decarbonizing gasket set for Volvo Penta:

• AQ115A

• AQ130A, AQ130C

• MB20B

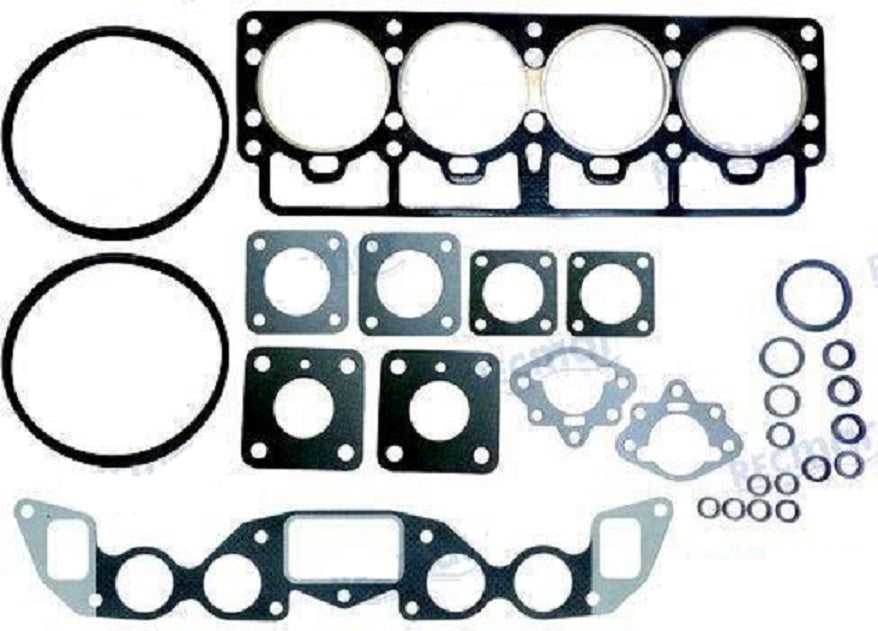

This head gasket kit, also known as a decarbonizing gasket kit, includes the head gasket with а reference  419310, which is 0.8mm thick and the ring is oval. The cylinder head bolts with reference 191523, should be replaced when needed[1], and tightening should be performed in two stages.

Tightening torque settings:

• 24-29 Nm 18-22 lbf. ft.
• 88 Nm 64 lbf. ft.

The screws are to be re-torqued after the engine has been warmed up.

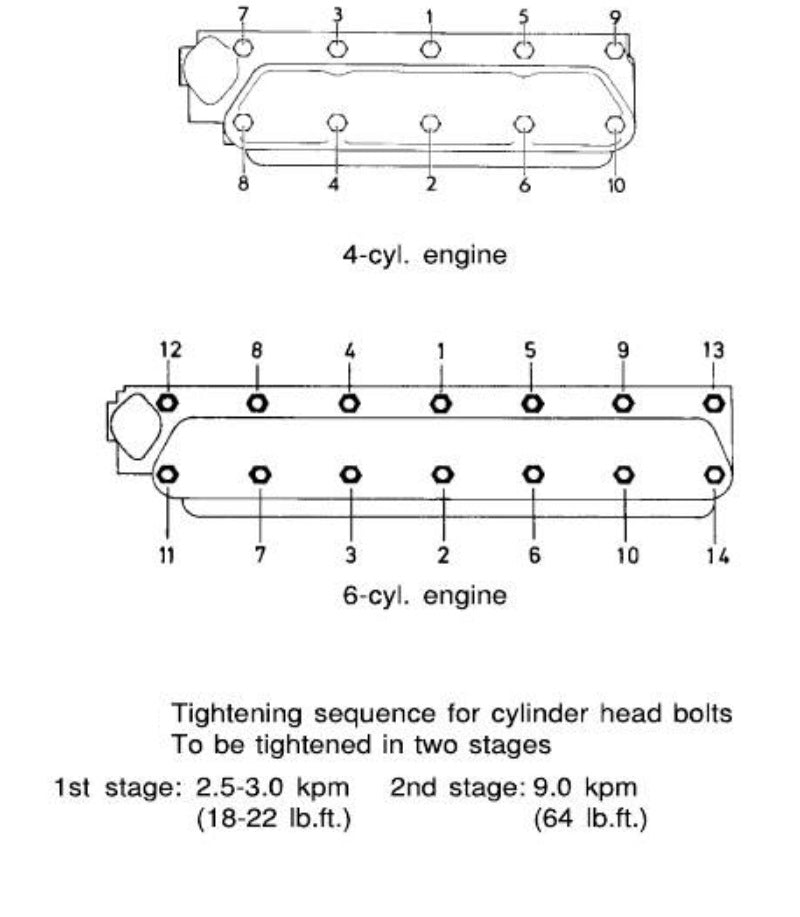

Kindly check the second picture that provides the necessary instructions, directly quoted from the Volvo Penta workshop manual.

[1] The cylinder head bolts should be replaced when there are signs of elongation, or cannot be specified if it is already elongated, by checking the "waist" of the bolt. As a rule of thumb, a cylinder head bolt of these Aquamatic series, cannot be re-used more than five times.

Recmar® Head Gasket Set Volvo Penta AQ115A AQ130A AQ130C MB20B 876356 18-2980

This product replaces the following manufacturer's part nr:

• Volvo Penta: 876356, 875401

• Orbitrade: ORB21401, 21401
• Sierra: 18-2980

• Crom: 121041
• Recmar order number: REC876356

The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
