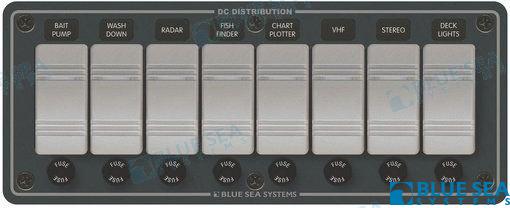

PANEL WATERPROOF 12VDC 8 POS. HORZ.
Water Resistant Fuse Panel 8 Position-Slate Gray
PN: 8261
Features
Designed for flybridge and open cockpit applications
Water resistant
Water resistant fuse holders accept commonly available AGC (Fast Acting) and MDL (Slow Blow) glass fuses
Installed switch is ON-OFF
Eight positions, eight installed Contura switches
Countersunk mounting holes throughout
Heavy 1/8"aluminum material
Two-part polyurethane slate gray finish
Water resistant Contura switches
"ON" indicating LEDs embedded in switch
Includes set of 60 small format common DC labels
Compact labels minimize panel space requirements
Designed for installations where height restrictions are present
Watertight mounting gasket
Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
Detailed installation instructions and cutout template
NOTE: Water resistant panel labels are not backlightable
Specifications
Voltage | 12 or 24 Volts DC |
Switch Rating | 20 Amperes @ 12 Volts DC |
15 Amperes @ 24 Volts DC | |
Switch LED Amperage Draw | 18 Milliamperes each |
Fuse Holder Rating | 20 Amperes maximum |
Panel Cumulative Rating | 45 Amperes |
Height | 3.75" (283.00mm) |
Width | 9.37" (133.35mm) |
